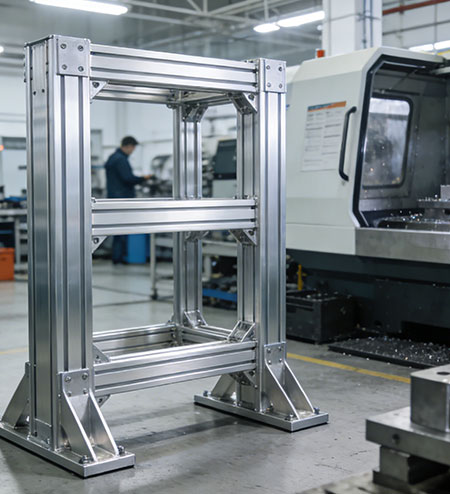

In the field of industrial automation, the stability of the equipment frame directly determines the precision and lifespan of the entire production line. This case study demonstrates our expertise in manufacturing heavy-duty aluminum structural frameworks for a high-end equipment manufacturer.
The client required a rack capable of supporting over 2 tons of mechanical pressure. We selected high-density 6063-T5 industrial aluminum profiles with reinforced cross-sections to ensure zero deformation under long-term load.
Using advanced CNC cutting and drilling, we ensured that every T-slot connection and gusset plate aligned perfectly. This allows for rapid on-site assembly and future modular expansion.
The base features heavy-duty anchor plates and leveled footings, effectively absorbing micro-vibrations from the machinery to maintain high operational accuracy.
| Feature | Specification |
|---|---|
| Material Grade | 6061 / 6063-T5 Anodized Aluminum |
| Cutting Tolerance | ±0.1mm (CNC Controlled) |
| Surface Finish | Clear/Black Anodized (Corrosion Resistant) |
| Applications | CNC Machine Bases, Robot Workstations, Cleanroom Frames |
Yuebao provides full-service aluminum fabrication, from structural design and drawing optimization to precision processing and pre-assembly.
