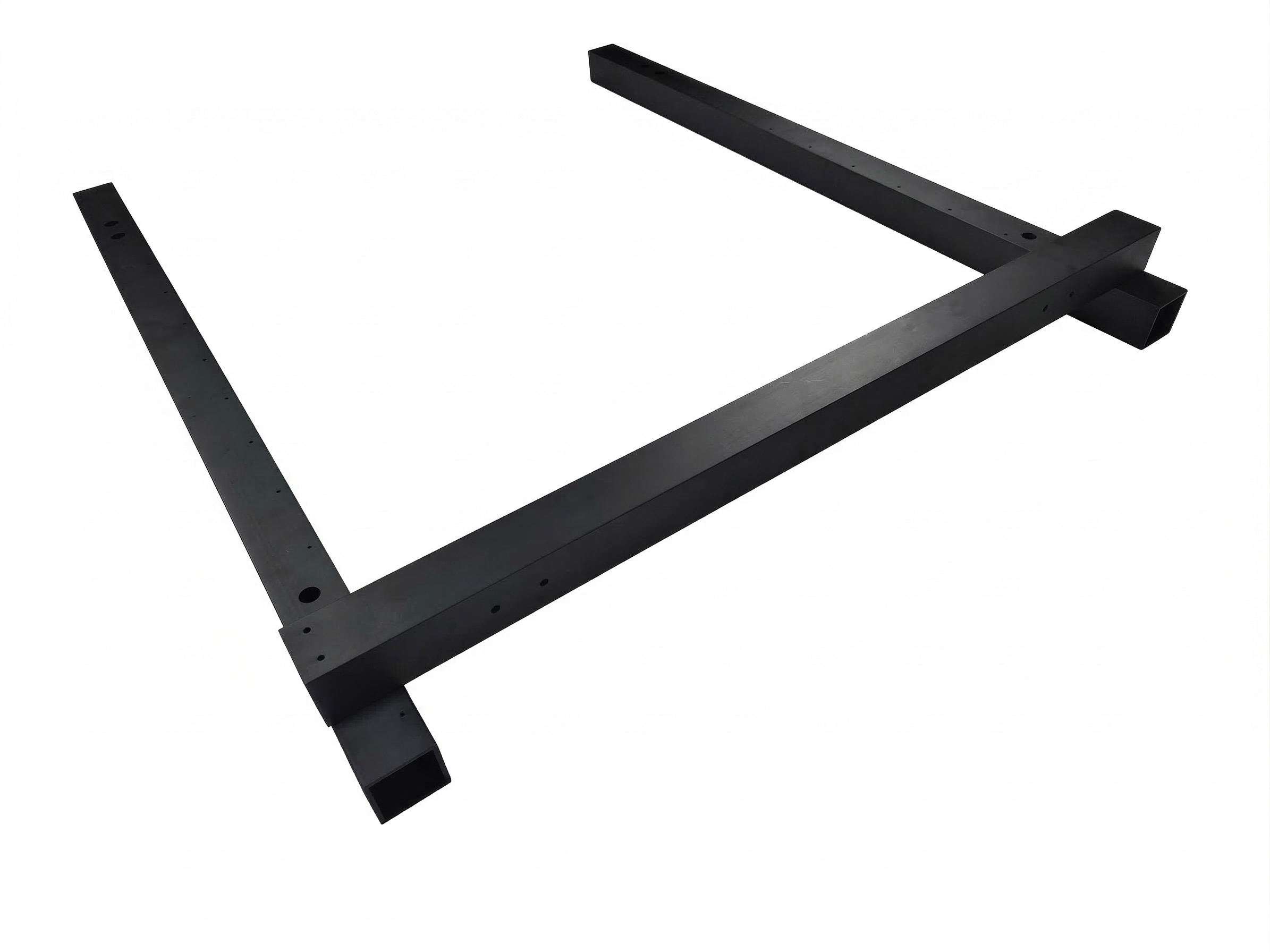

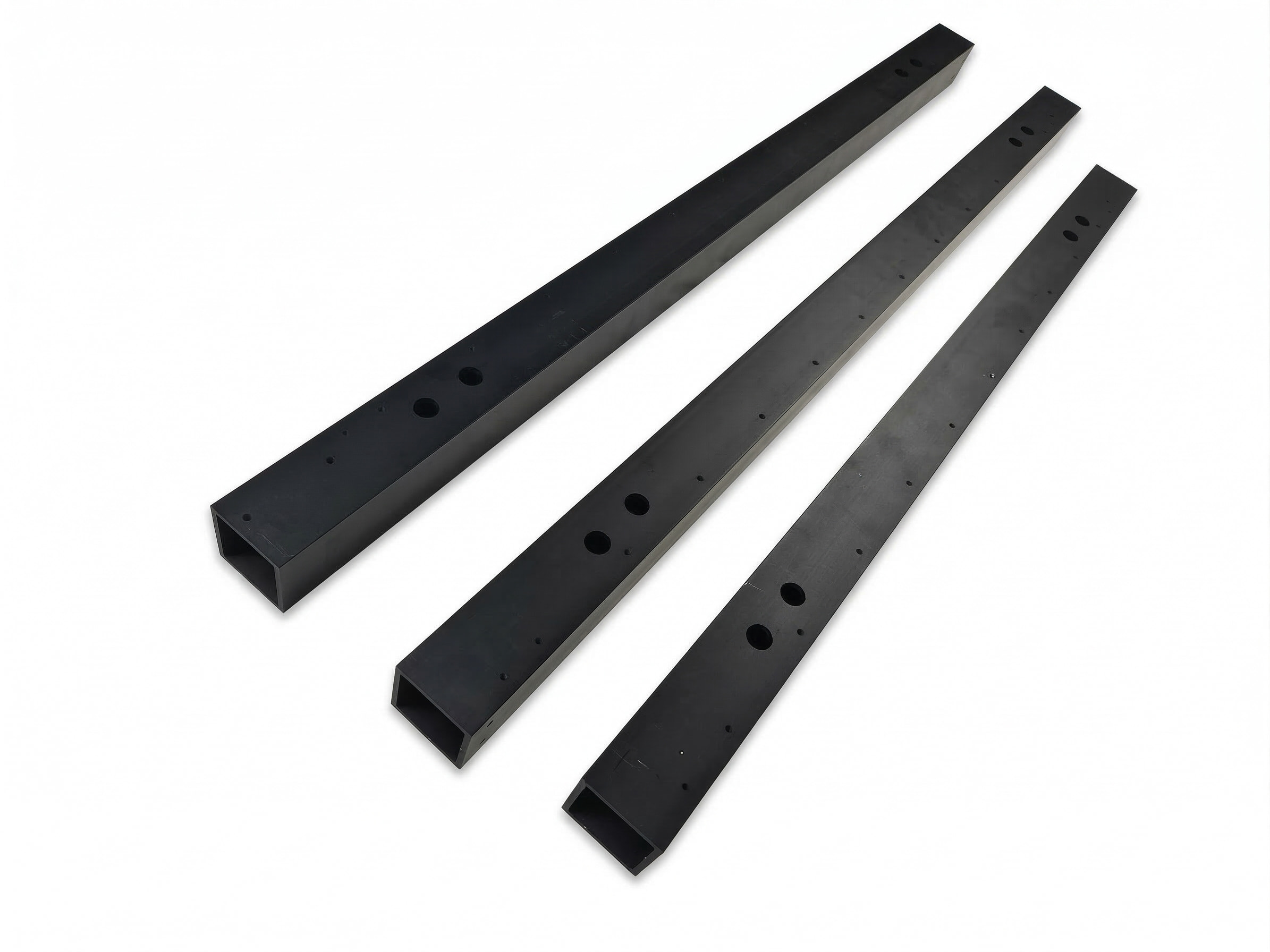

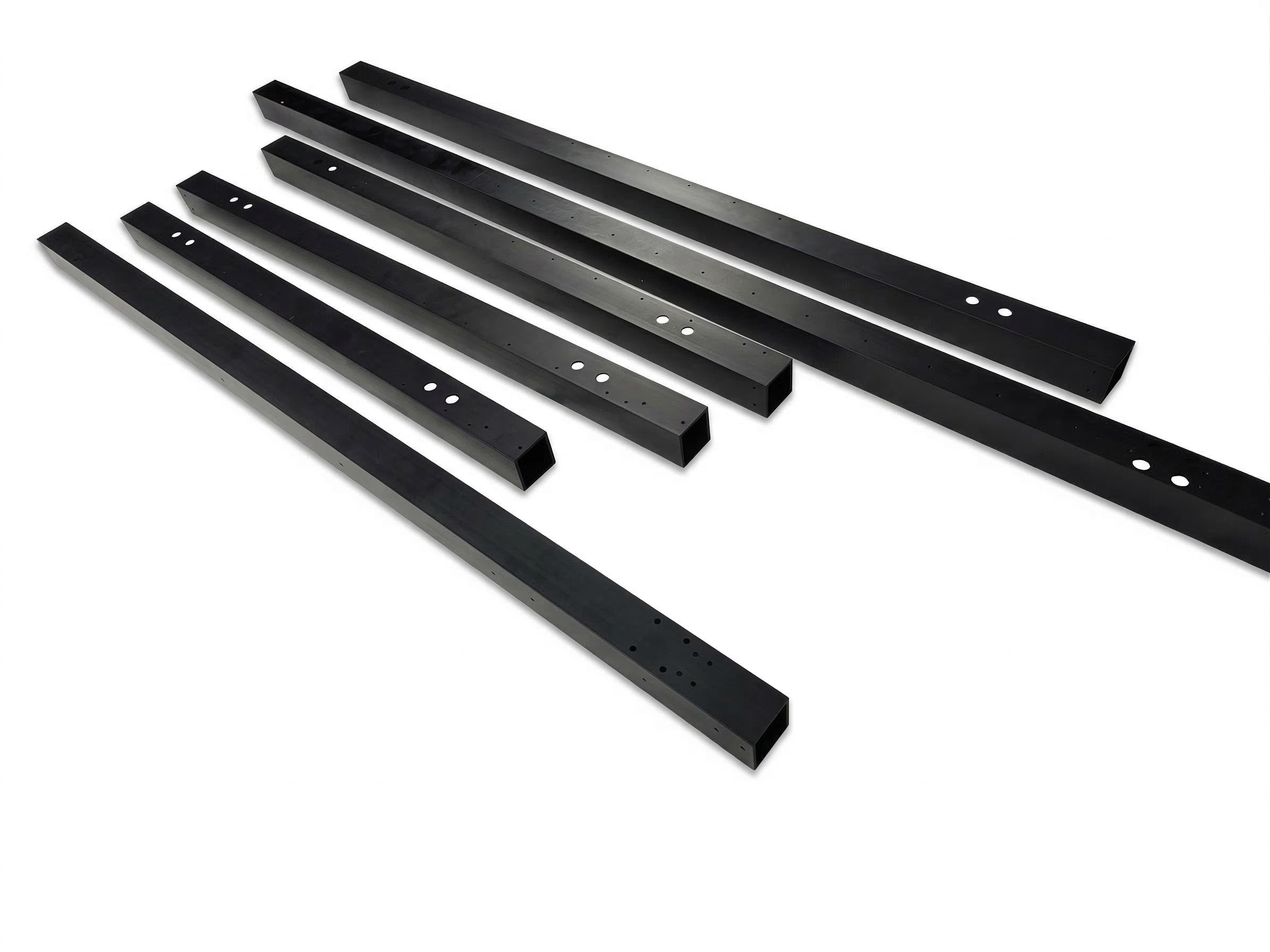

Expertly crafted 4040 aluminum extrusion rails featuring precision-drilled mounting holes and a high-grade black anodized finish. We provide robust structural components designed for high-stability DIY laser engravers and CNC frames, ensuring unmatched rigidity and smooth linear motion for professional-grade marking and cutting.
Payment :
T/T, PayPal, Western Union, L/CProduct Origin :
Shenzhen / Guangzhou (Optional)Lead Time :
7-15 days for samples; 20-30 days for mass productionPackaging :
Protective foam + standard export carton / wooden caseMaterial Certification :
RoHS, REACH, ISO9001 CompliantSupply Ability :
50,000 Pieces per MonthCustom :
It can be customized according to the drawings
| Profile Type | 4040 Series (40mm×40mm Cross-section) |
| Slot Type | V-Slot (Crucial for linear motion wheels) |
| Material | 6063-T5 High-strength Aluminum Alloy |
| Surface Finish | Black Anodized (Wear-resistant & anti-corrosion) |
| Straightness | ≤0.3mm/m (High precision for accurate laser paths) |
| Cutting Tolerance | ±0.5mm |
| Mounting Holes | Precision CNC pre-drilled (e.g., M5/M6 threads) |
| Hardness | ≥12 HW (Webster Hardness) |
Our Advantages
OEM/ODM tooling and product design based on your drawings.
High-precision aluminum extrusion for stable structural components.
Multi-axis CNC machining with tight tolerance processing.
Anodizing, sandblasting, brushing, and powder coating options.
Q: V-Slot vs. T-Slot: Which one do I need?
A: For laser engraving, you need V-Slot. Its angled edges allow wheels to glide smoothly. T-Slot is for static frames only and won't support linear motion.
Q: Why choose 4040 over the standard 2020 profile?
A: Stability. 4040 is much more rigid, eliminating vibrations and "wavy" engraving lines that occur with thinner 2020 rails, especially at high speeds.
Q: Will this fit my Ortur, Atomstack, or Sculpfun machine?
A: Yes. Our rails follow universal industrial standards and include CNC pre-drilled holes, making them a perfect fit for upgrading or repairing major DIY laser brands.
Q: Is the black anodized finish just for looks?
A: No. It provides a hardened, scratch-resistant surface for smoother rolling and reduces dangerous laser reflections compared to raw silver aluminum.
Q: Can I use these for large-scale (e.g., 1m+) DIY frames?
A:Absolutely. 4040 is the best choice for large frames because it won't sag or bend over long distances, ensuring the laser stays perfectly in focus.
Expertly crafted 4040 aluminum extrusion rails featuring precision-drilled mounting holes and a high-grade black anodized finish. We provide robust structural components designed for high-stability DIY laser engravers and CNC frames, ensuring unmatched rigidity and smooth linear motion for professional-grade marking and cutting.
View More

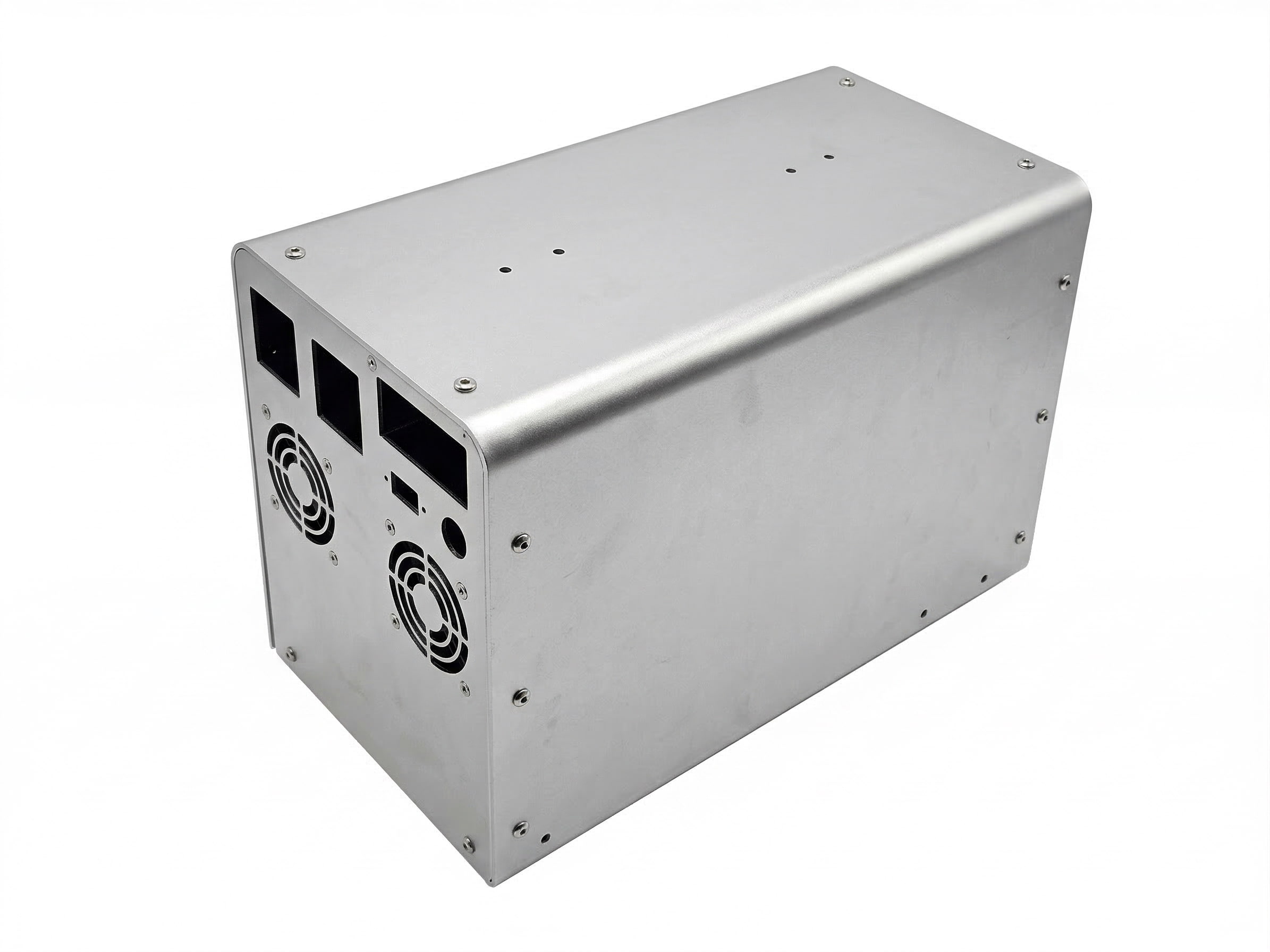

Expertly engineered all-aluminum chassis featuring precision CNC fabrication and optimized thermal management. We specialize in custom metal solutions providing unmatched structural integrity for professional fiber laser marking workstations.
View More

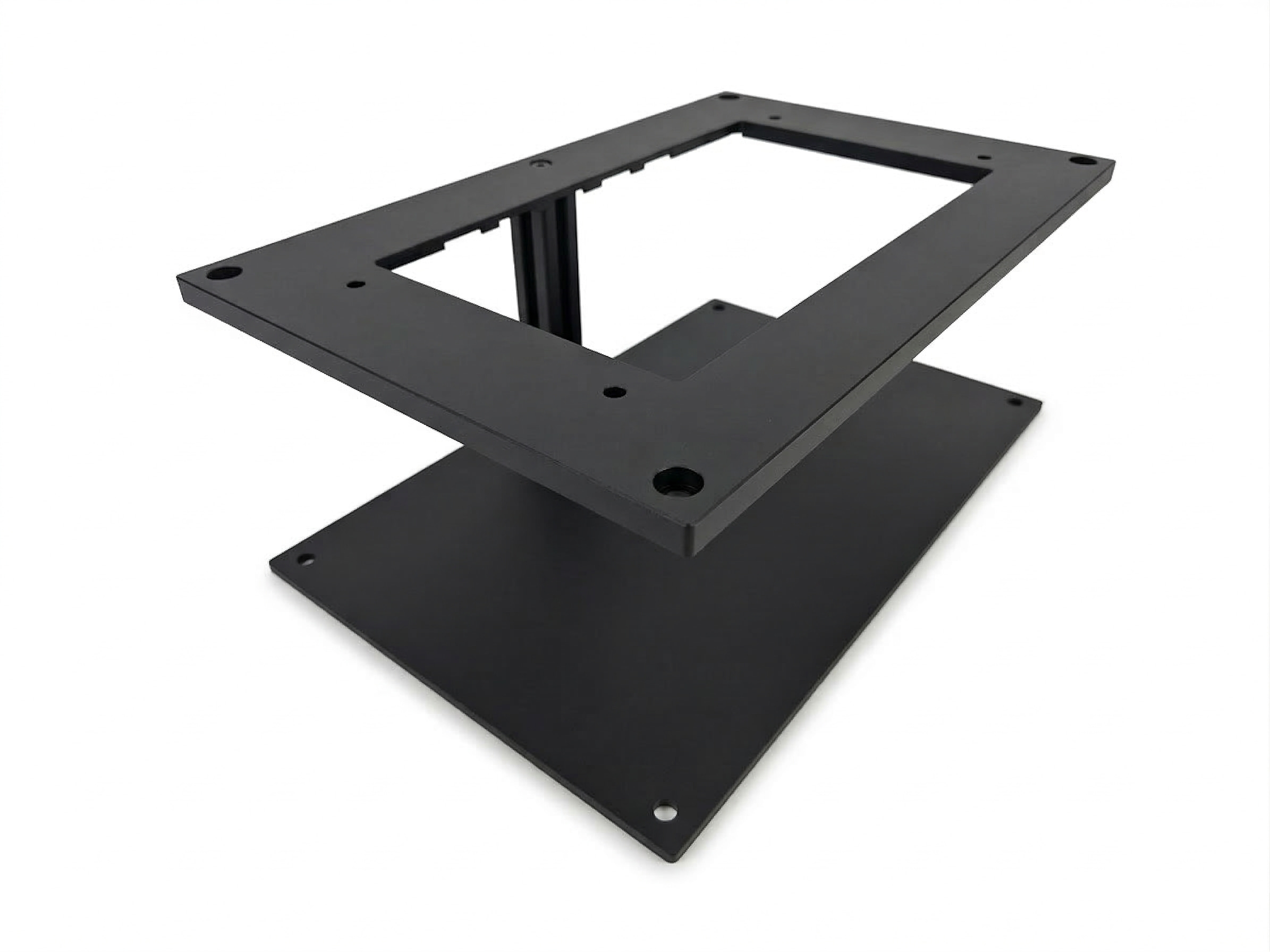

As a leading manufacturer of high-precision CNC components, we provide premium Gantry Plates, Riser Plates, and Structural Base Plates tailored for industrial 3D printers and CNC machines. Our products are engineered using advanced CNC laser cutting and precision bending to ensure unmatched structural integrity. We specialize in delivering custom metal solutions that meet the rigorous stability requirements of high-speed 3D printing and heavy-duty engraving equipment.
View More

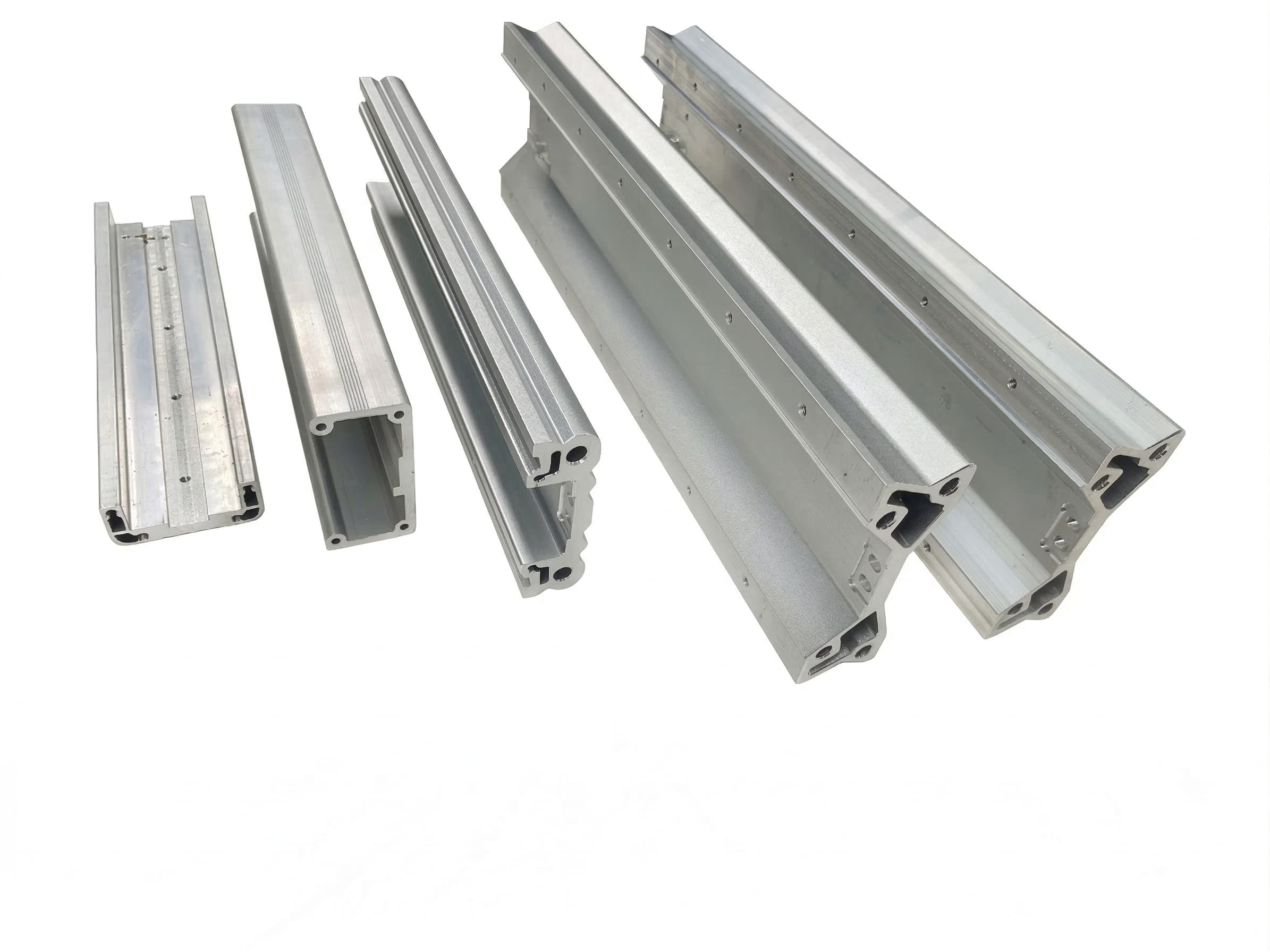

Professional OEM/ODM Manufacturer of High-Precision Linear Support Columns and Guide Rails. We specialize in heavy-duty aluminum structural profiles designed for high-stability 3D printers, CNC engraving machines, and advanced medical equipment frames.
View More

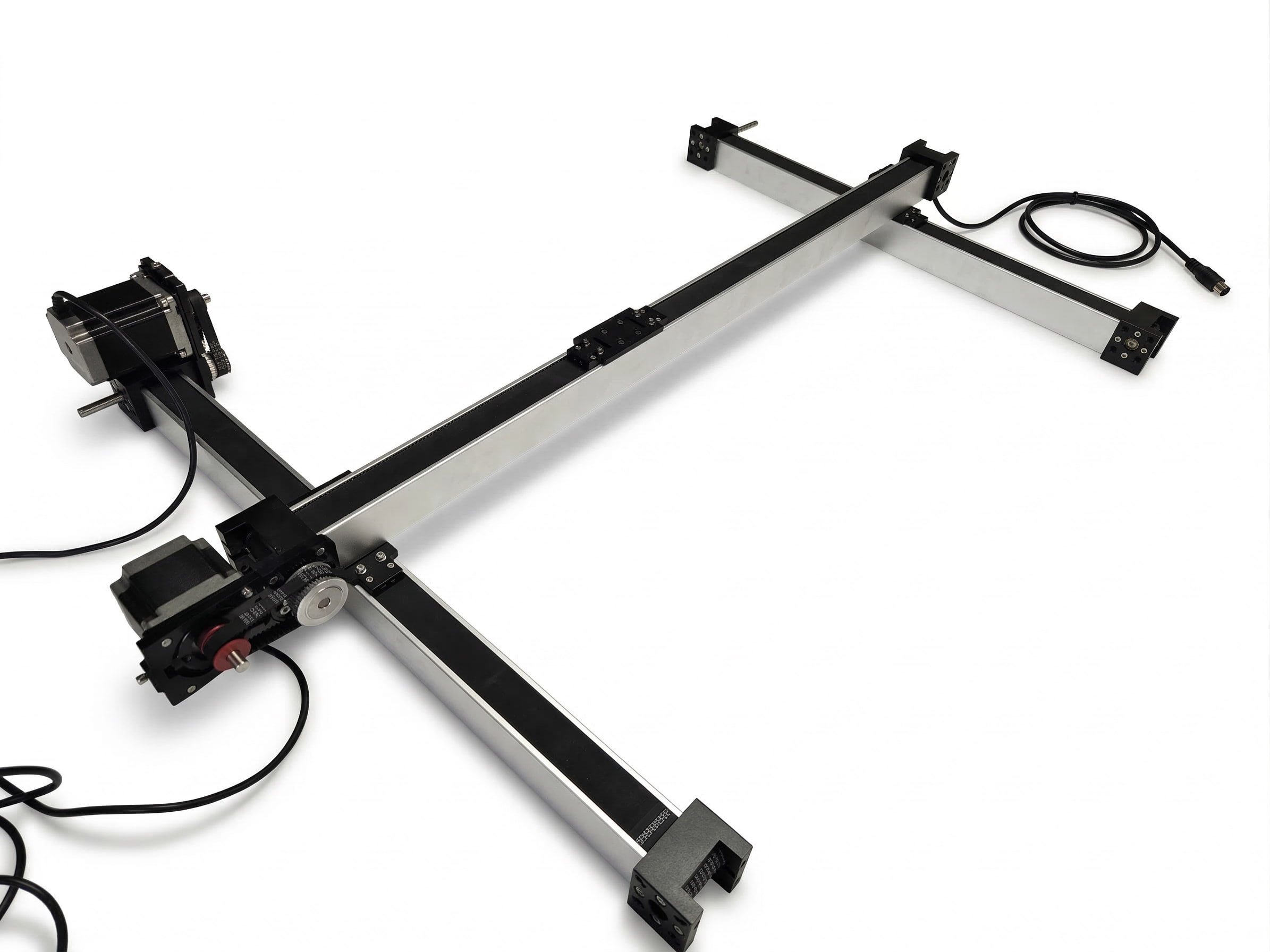

Professional OEM/ODM Manufacturer of Modular Linear Motion Kits. We specialize in versatile, belt-driven gantry systems designed for laser engraving, precision drawing (plotters), and light-duty automated pick-and-place tasks. Fully customizable stroke lengths (X/Y/Z) to perfectly fit your 2D or 3D technical drawings.
View More

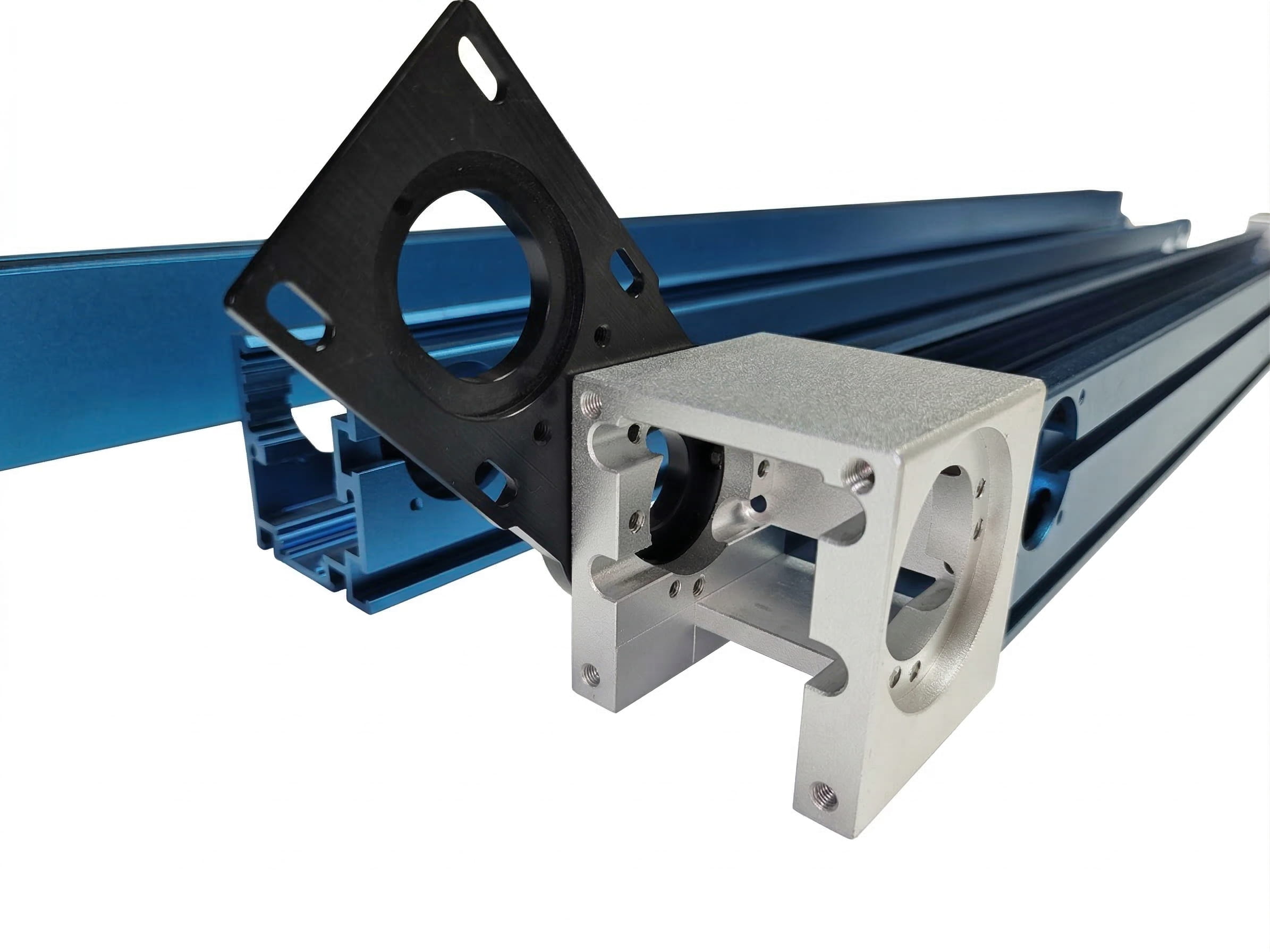

Professional OEM/ODM service for custom linear motion modules. We specialize in high-precision CNC machined aluminum guide rails, belt-driven stages, and integrated motor mount assemblies. Our solutions are designed for automated equipment, offering superior structural rigidity, smooth linear travel, and precise motor alignment. Fully customizable according to your 2D/3D technical drawings.
