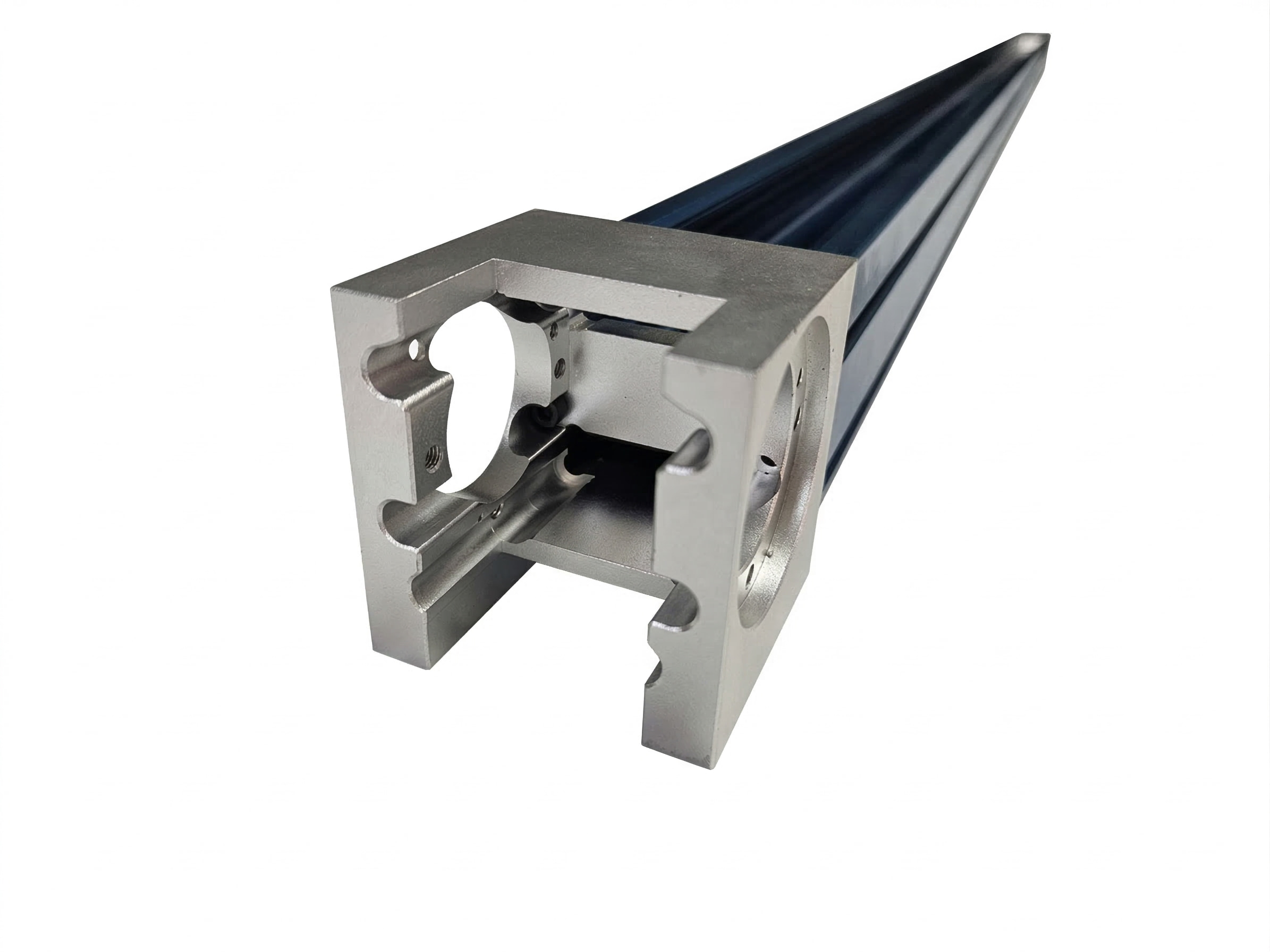

Professional OEM/ODM service for custom linear motion modules. We specialize in high-precision CNC machined aluminum guide rails, belt-driven stages, and integrated motor mount assemblies. Our solutions are designed for automated equipment, offering superior structural rigidity, smooth linear travel, and precise motor alignment. Fully customizable according to your 2D/3D technical drawings.
Payment :
T/T, PayPal, Western Union, L/CProduct Origin :
Shenzhen / Guangzhou (Optional)Lead Time :
7-15 days for samples; 20-30 days for mass productionPackaging :
Protective foam + standard export carton / wooden caseMaterial Certification :
RoHS, REACH, ISO9001 CompliantSupply Ability :
50,000 Pieces per MonthCustom :
It can be customized according to the drawings
Customized high-precision linear motion systems, including belt-driven guide rails and integrated motor mounting solutions for industrial automation and CNC equipment.
| Materials | Aluminum 6061 / 6063 / 7075 |
| Surface Finish | Anodizing (Blue/Clear/Black), Hard Anodizing, Sandblasting |
| Applicable Series | NEMA 23/34 Stepper Motors, 60/80/110/130 Series Servo Motors |
| Machining Process | CNC Milling, Precision Extrusion, Drilling, Tapping, Surface Finishing |
| Quality Control | Full Dimensional Inspection, Straightness Testing, CMM Measurement |
| Tolerance | ±0.01mm to ±0.05mm (customizable based on drawings) |
| Travel Length | Customized according to requirements (Max up to 6000mm) |
| Drive System | High-Strength Timing Belt & Pulley System |
| Repeatability | ±0.05mm (for belt drive) |
Our Advantages
OEM/ODM tooling and product design based on your drawings.
High-precision aluminum extrusion for stable structural components.
Multi-axis CNC machining with tight tolerance processing.
Anodizing, sandblasting, brushing, and powder coating options.

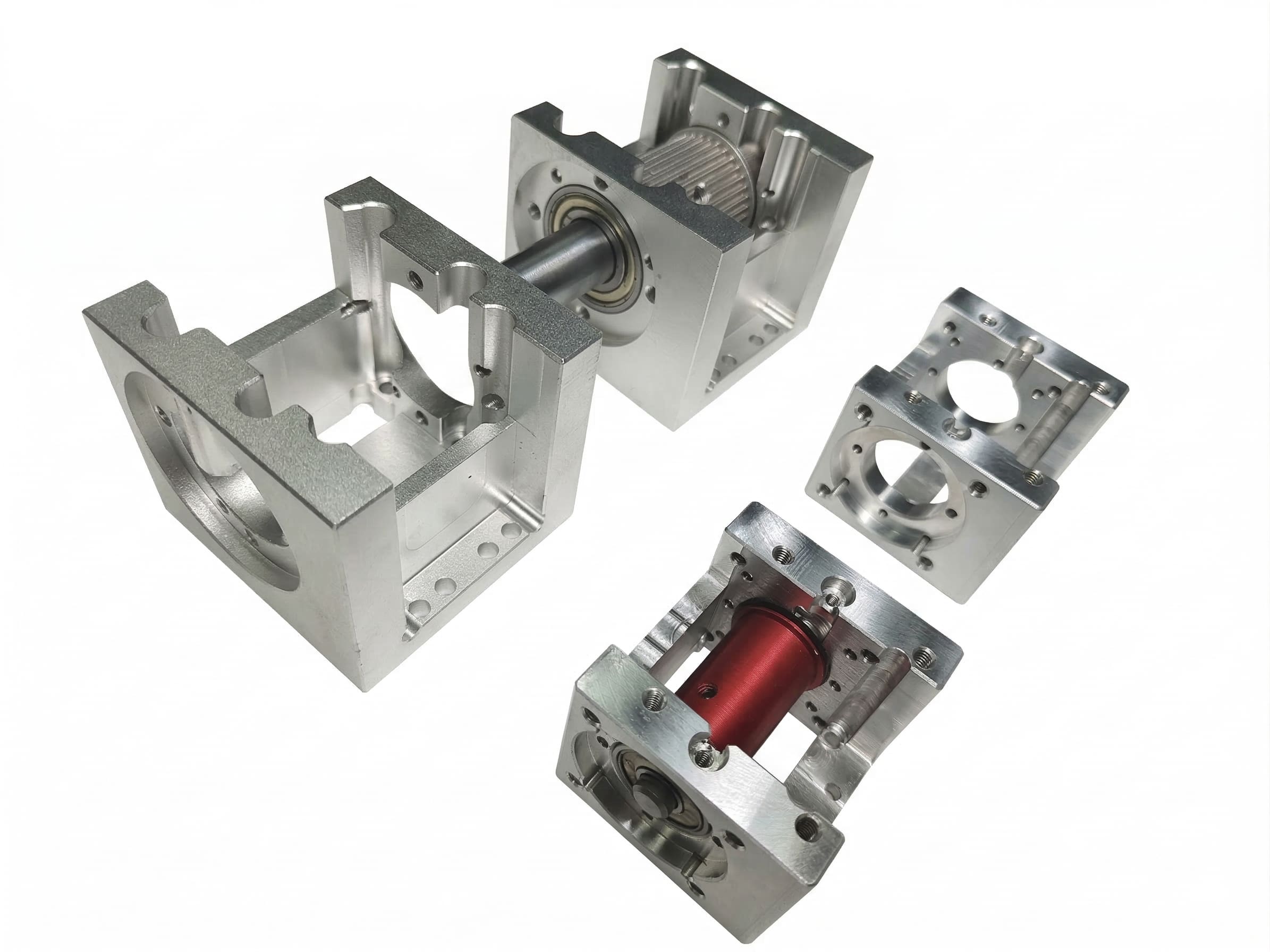

Q: Can you customize the motor mount for specific servo or stepper motors?
A: Yes. We can precision-machine the motor mounting plate and coupling housing to fit any motor brand (e.g., Panasonic, Delta, NEMA 23/34). Just provide us with your motor's technical drawing or model number.

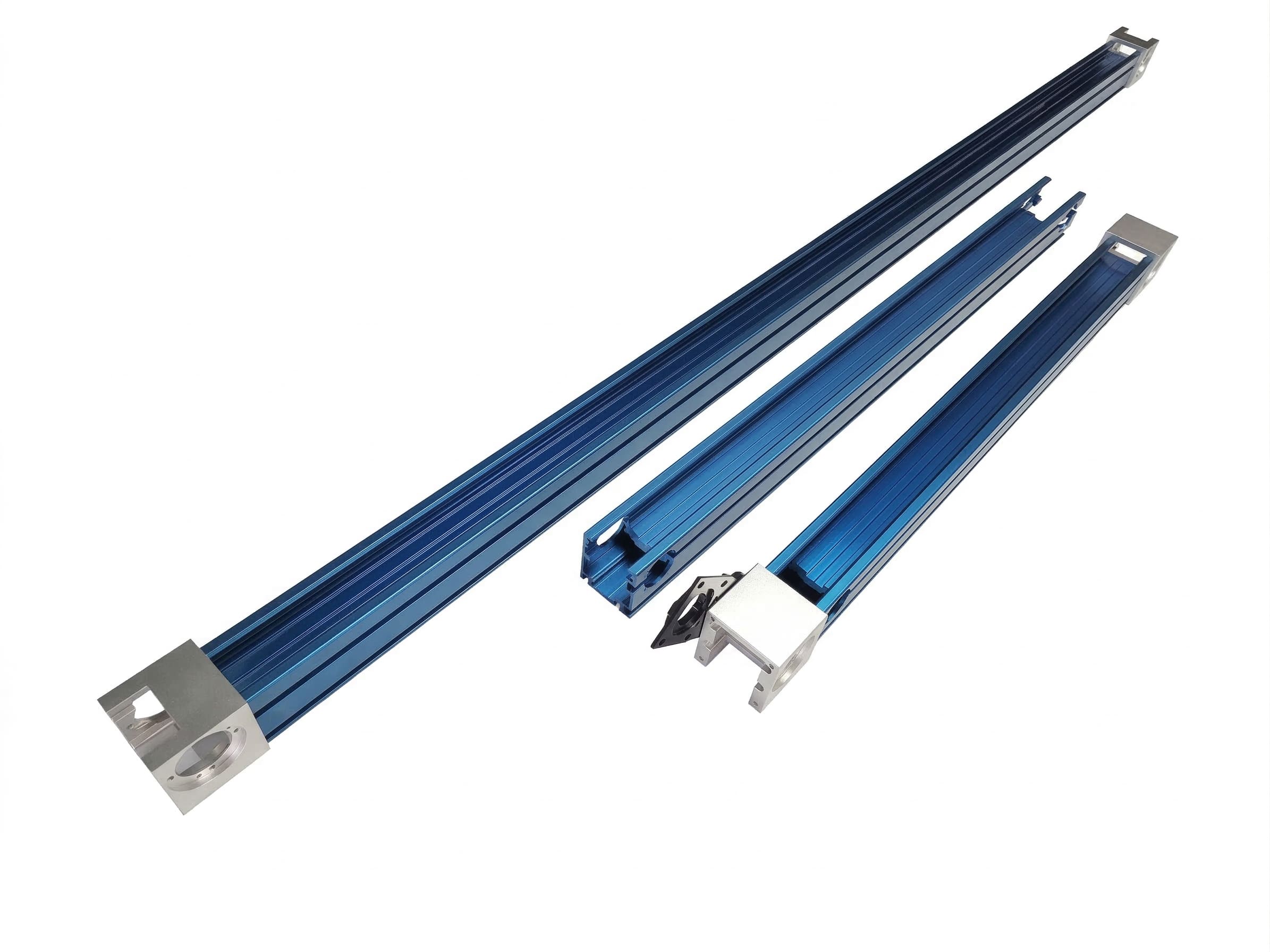

Q: What is the maximum travel length you can provide for these belt-driven modules?
A: We offer fully customizable stroke lengths. Our high-precision aluminum profiles can be machined up to 6,000mm in a single piece, ensuring smooth linear motion even for long-distance applications.
Q: Do you ship these as separate components or a fully assembled system?
A: We offer both options. We can provide a ready-to-install assembly including the guide rail, belt system, and motor mount, or ship them as CNC-machined kits to save on shipping costs.
Q: What are the precision specifications for your belt-driven linear modules?
A: Our CNC-machined components achieve tolerances within ±0.01mm. The belt drive system offers high repeatability (up to ±0.05mm) and is optimized for high-speed positioning and low-noise operation.
Q: Can you provide specific colors or hard-anodizing for wear resistance?
A: Absolutely. We offer professional anodizing in various colors (Blue, Black, Clear) as well as Hard Anodizing for increased surface hardness and wear resistance in demanding industrial environments.
