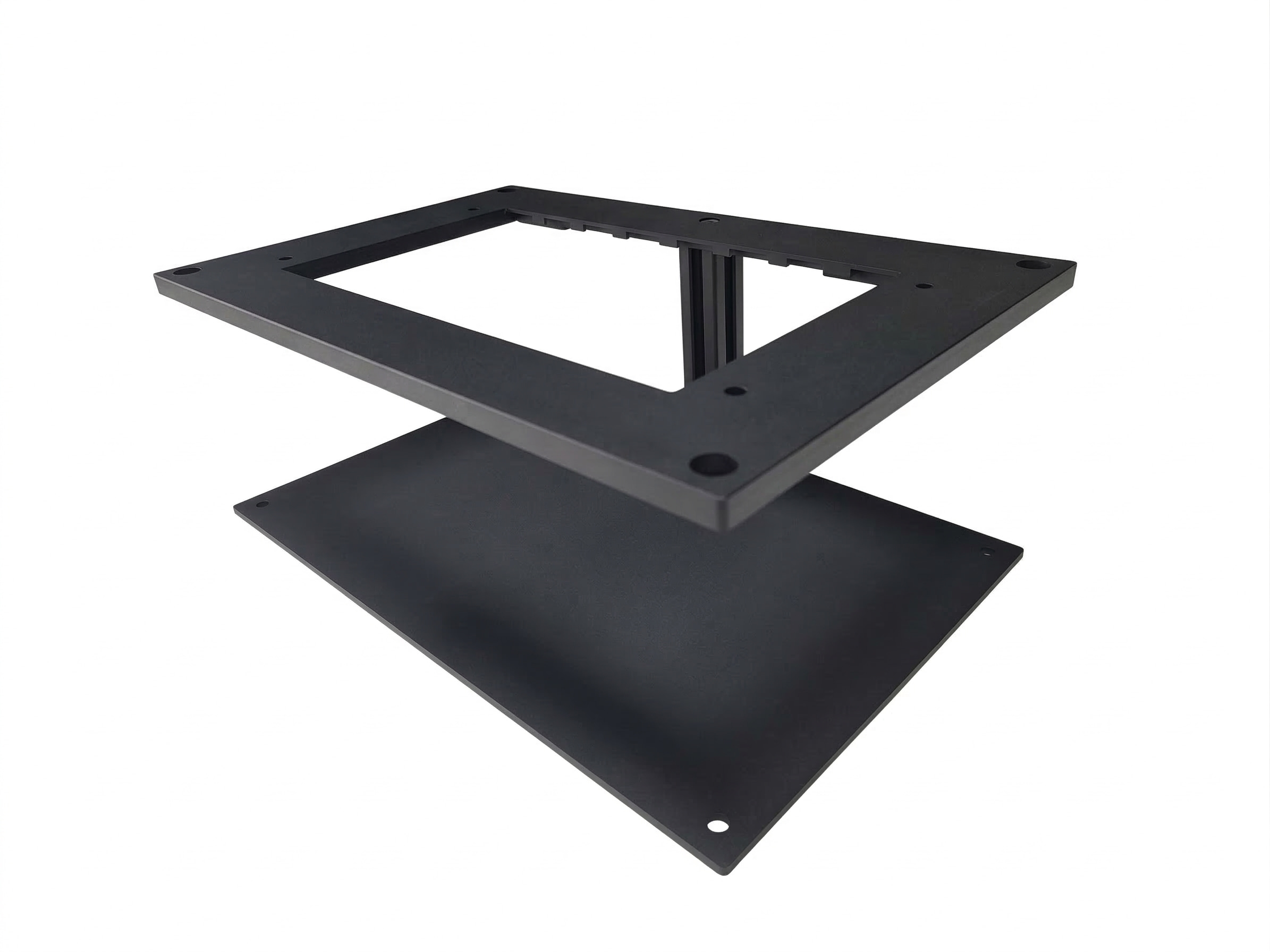

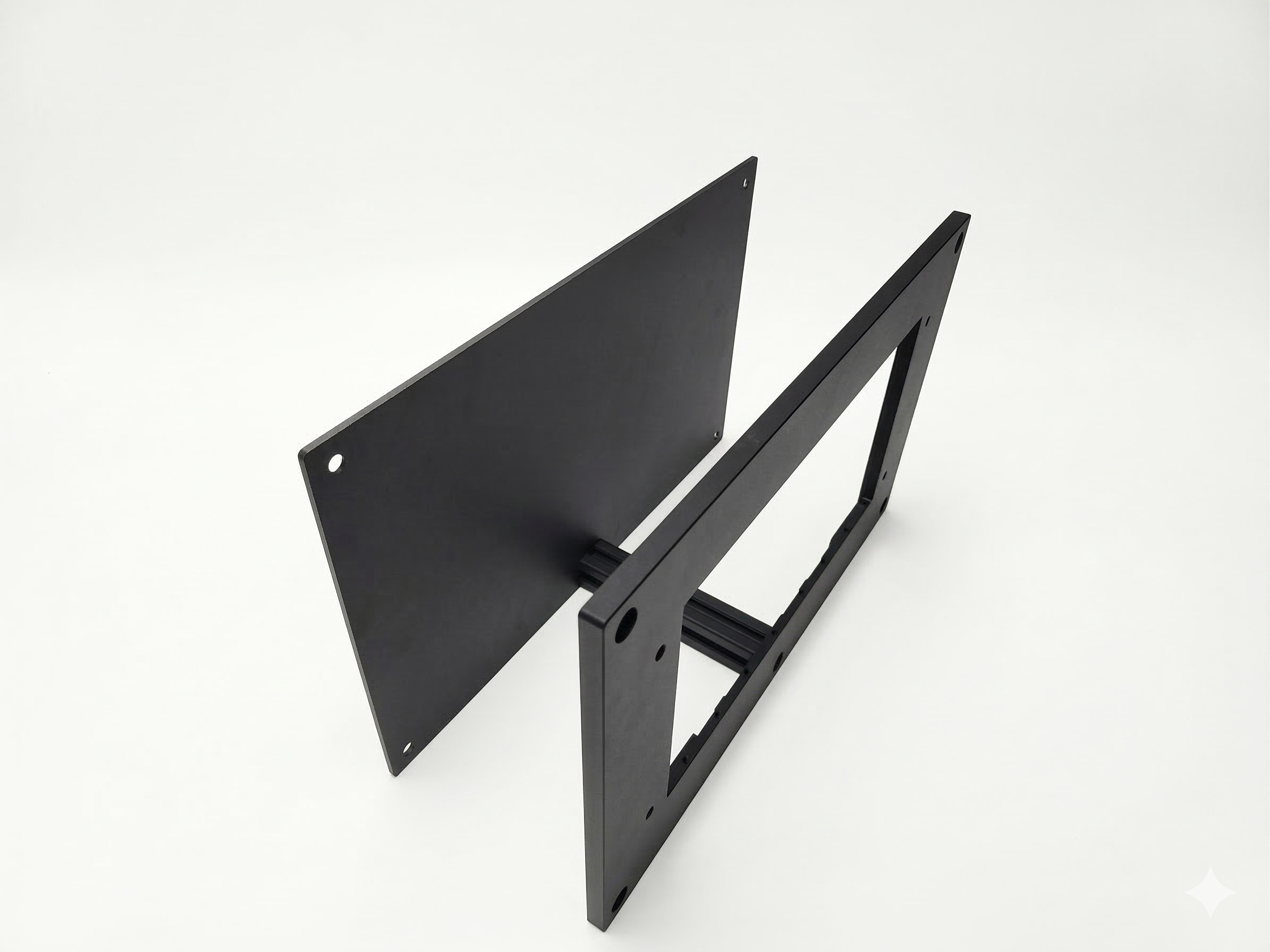

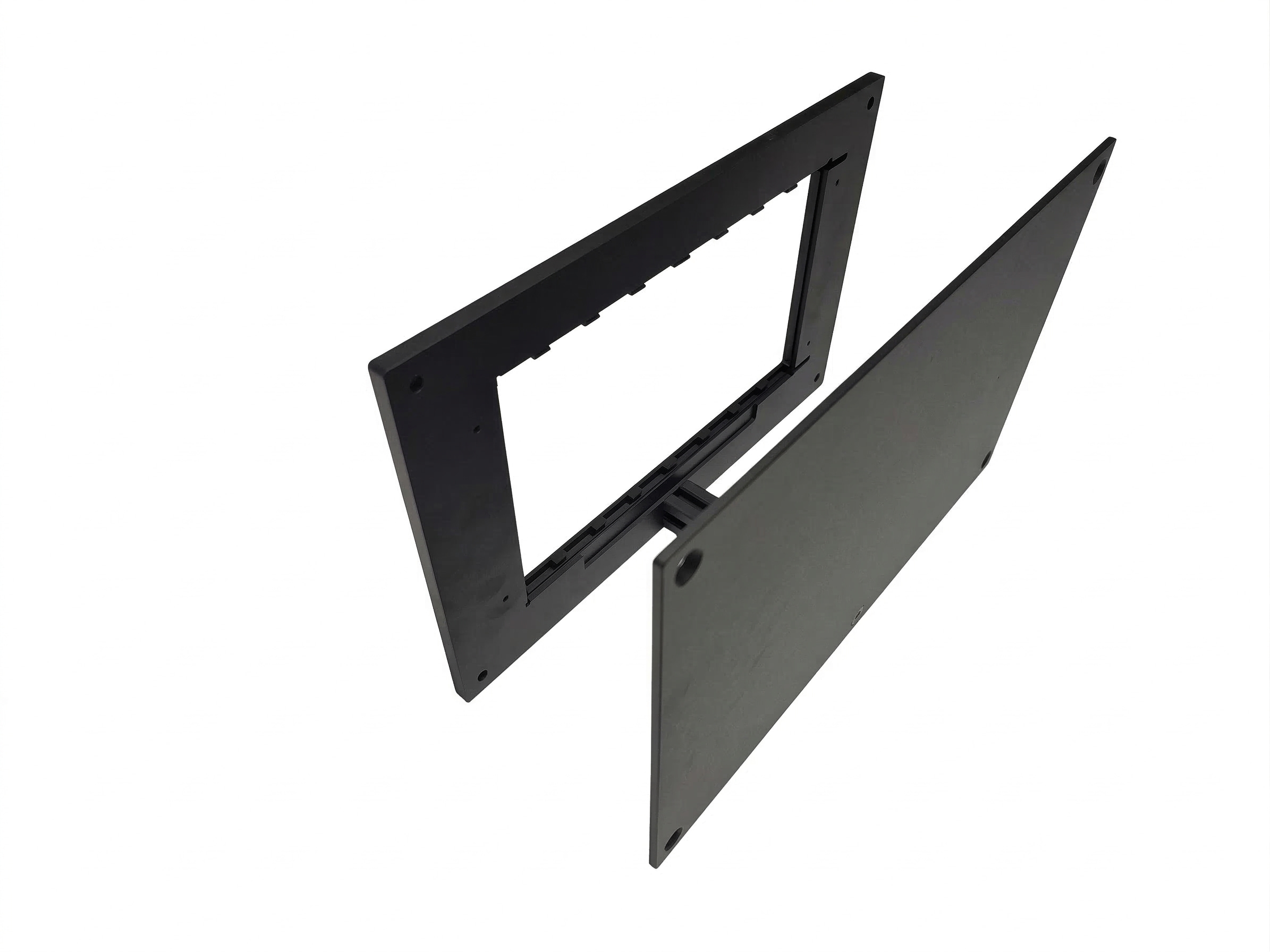

As a leading manufacturer of high-precision CNC components, we provide premium Gantry Plates, Riser Plates, and Structural Base Plates tailored for industrial 3D printers and CNC machines. Our products are engineered using advanced CNC laser cutting and precision bending to ensure unmatched structural integrity. We specialize in delivering custom metal solutions that meet the rigorous stability requirements of high-speed 3D printing and heavy-duty engraving equipment.
Payment :
T/T, PayPal, Western Union, L/CProduct Origin :
Shenzhen / Guangzhou (Optional)Lead Time :
7-15 days for samples; 20-30 days for mass productionPackaging :
Protective foam + standard export carton / wooden caseMaterial Certification :
RoHS, REACH, ISO9001 CompliantSupply Ability :
50,000 Pieces per MonthCustom :
It can be customized according to the drawings
Our CNC-machined gantry and riser plate sets are designed for high-stability motion systems and structural support. Unlike standard profiles, these precision-bent sheet metal components provide exceptional torsional rigidity and a compact footprint for industrial 3D printers, CNC routers, and automated laboratory equipment.
| Material Options | Cold-Rolled Steel / Aluminum 6061-T6 |
| Plate Thickness | Customizable |
| Hole Precision | ± 0.05 mm to ±0.1 mm |
| Surface Finish | Industrial Matte Powder Coating (Scratch-Resistant) |
| Compatibility | NEMA 17/23 Motors, C-Beam, 20/40 Series Profiles |
| Edges & Corners | Machine-Deburred & Rounded |
Our Advantages
OEM/ODM tooling and product design based on your drawings.
High-precision aluminum extrusion for stable structural components.
Multi-axis CNC machining with tight tolerance processing.
Anodizing, sandblasting, brushing, and powder coating options.
Q: Which linear systems are these plates compatible with?
A: Our plates are precision-engineered for C-Beam, V-Slot, and 20/40 series aluminum profiles. They feature universal mounting patterns for seamless integration with standard CNC and 3D printer hardware.
Q: Why choose CNC sheet metal over standard profile connectors?
A: These CNC-machined plates offer superior torsional rigidity and vibration dampening. The integrated bending design eliminates the need for multiple brackets, ensuring a more stable and accurate machine frame.
Q: Do you offer custom CNC fabrication for specific dimensions?
A: Yes. We provide full OEM/ODM services, including custom hole patterns, specific plate thicknesses (2mm to 10mm), and CAD-based modifications for your unique CNC or 3D printer project.
Q: How durable is the matte black surface finish?
A: We apply an industrial-grade powder coating that is heat-cured for maximum durability. It is scratch-resistant, corrosion-proof, and designed to withstand harsh industrial environments.
Q: What motor sizes do these plates support?
A:The pre-drilled patterns are optimized for NEMA 17 and NEMA 23 stepper motors, providing a heavy-duty mounting solution for various Z-axis and gantry drive systems.
